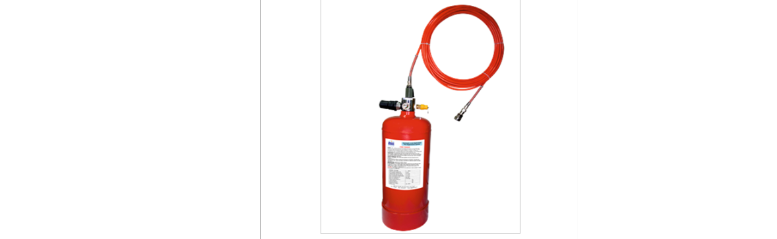

The HFC-227ea fire suppression system is suitable for combating electrical fires. As a clean agent, HFC-227ea is electrically non-conductive and leaves no residue, making it safe for use in protecting delicate and sensitive equipment. The system features a high-grade welded steel cylinder, painted in RAL 3000, and operates within a temperature range of 21°C to 45°C. It is pressurized with nitrogen (N₂) to 12 bar at 21°C and includes a chrome-plated brass valve. This cost-effective system is fully automatic and does not require an external electrical source for activation.

Technical Specification

• Max Operating temp. : ° C 0 to
• +45 Max Operating Pr. : Bar 12
• Test Pr.: Bar 15
• Detection tube max length : MT 10/ 10 / 15
• Clean agent : HFC-227ea
• Cylinder empty weight : Kg 4.5/5.6/6.6
• Gross weight : Kg 5.50 /6.5/ 7.5/ 9.6/ 10.6/ 12.6/ 14.6/ 16.6
